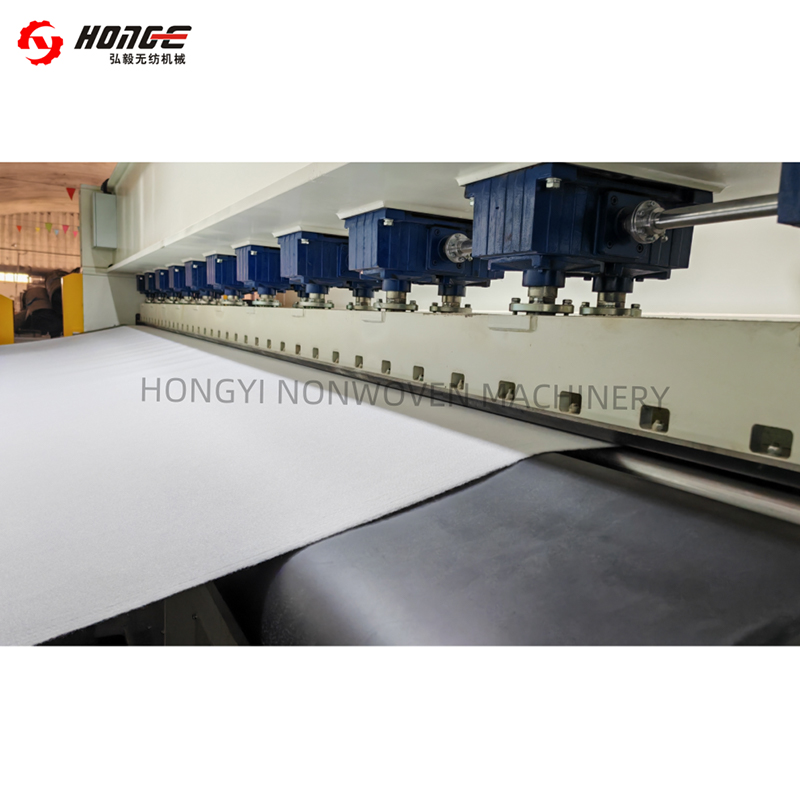

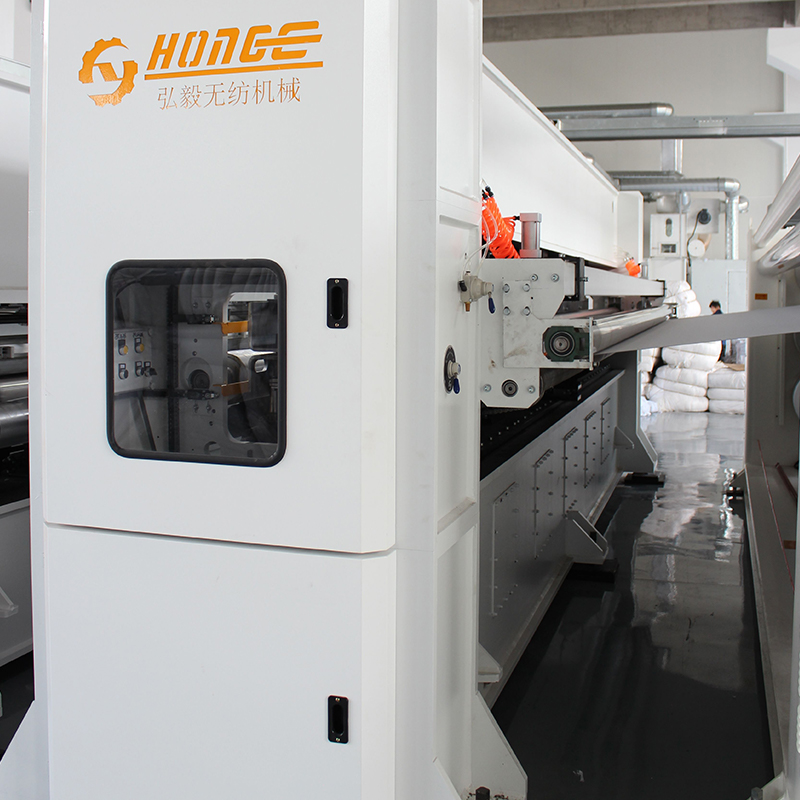

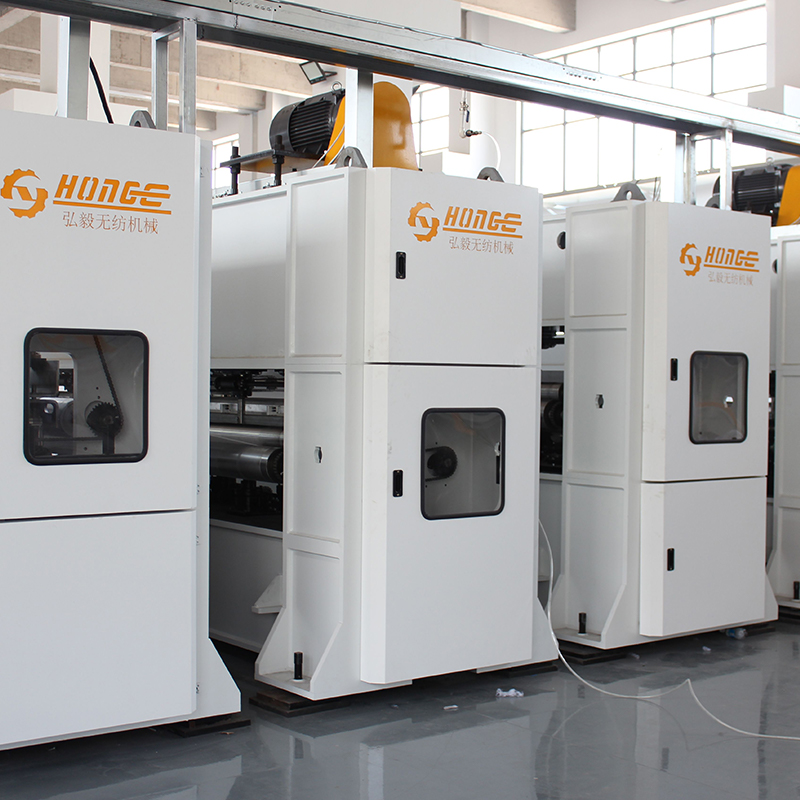

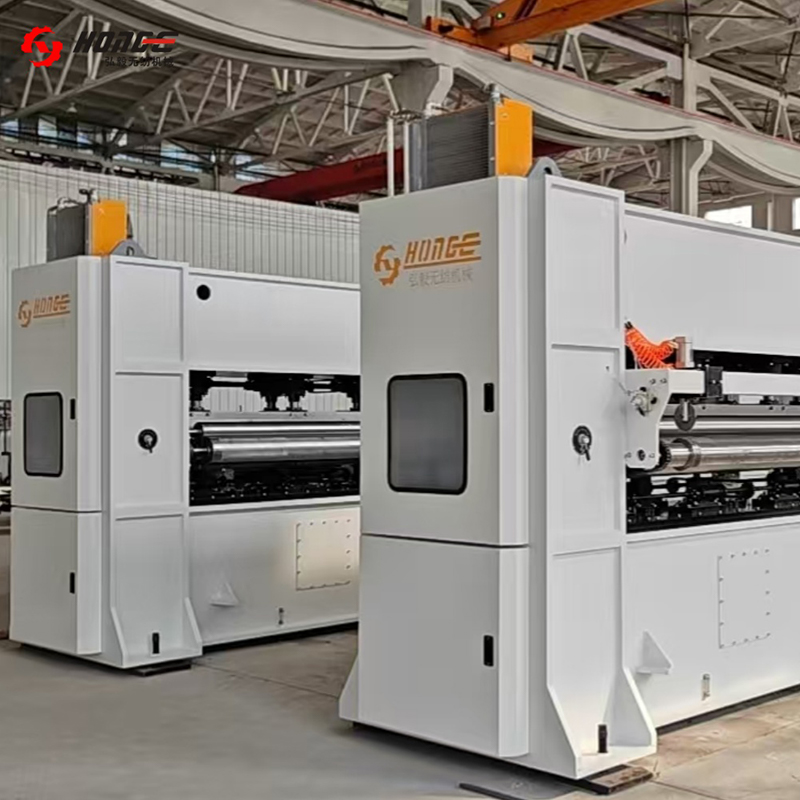

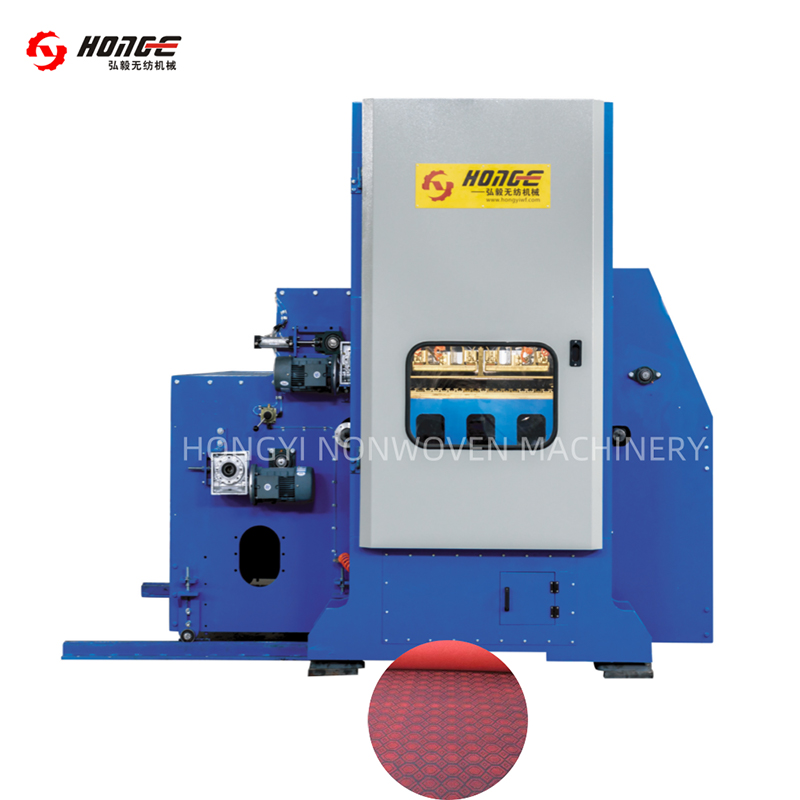

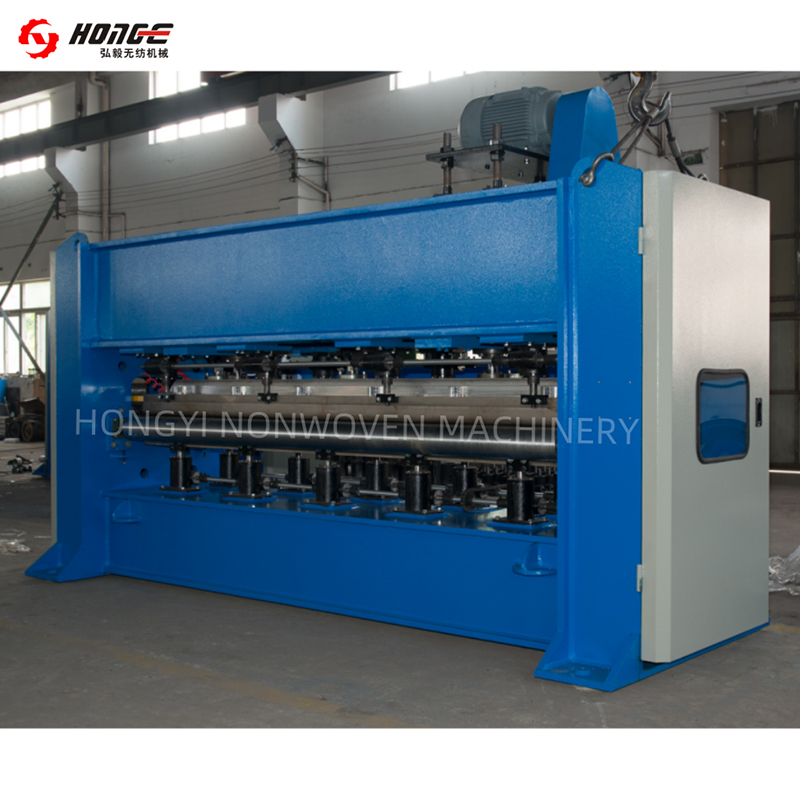

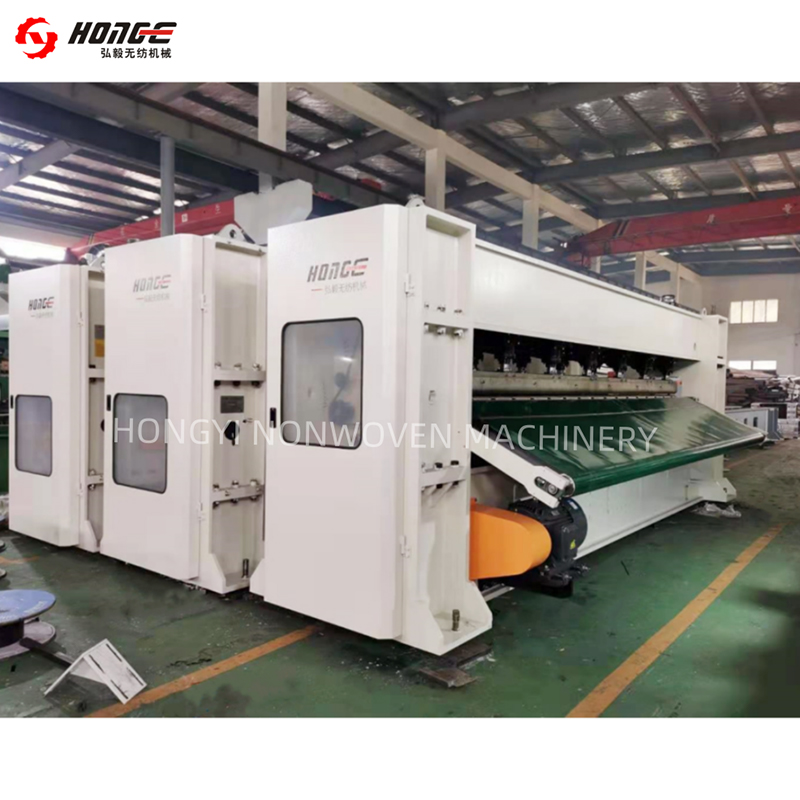

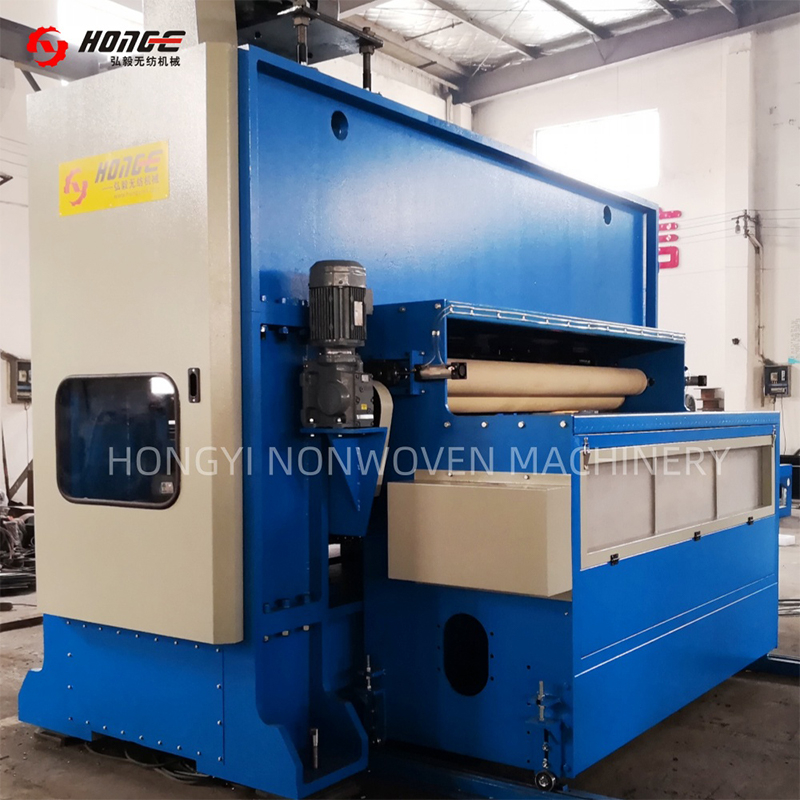

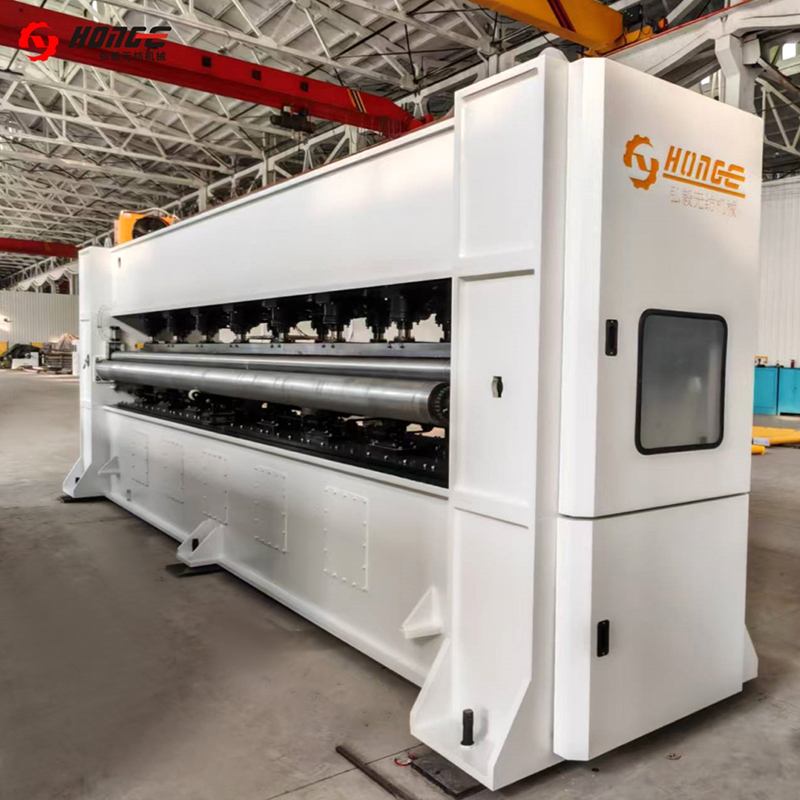

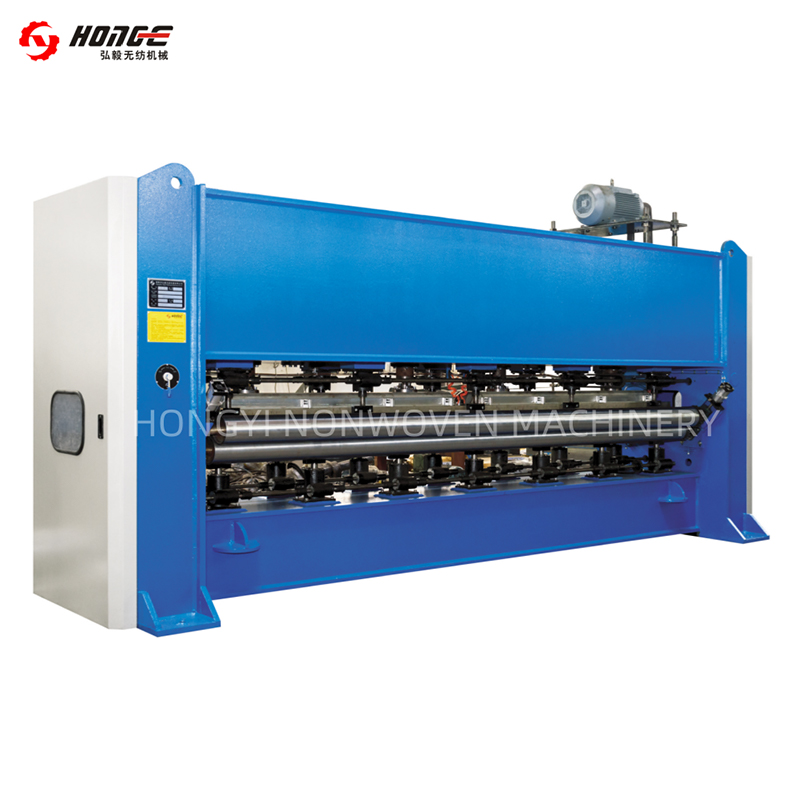

HYZC Needle Punching Machine

This nonwoven machine is used for reinforcing and surface finishing of the nonwoven fabrics.
We can produce a complete range of needle looms to satisfy the requirements of nonwoven industry.
All types of needle board configuration including single board or double-boards, up&down stroke and with middle speed or high speed.

Function:
Used for reinforcing and surface finishing of the nonwoven fabrics.
Main specifications:
Working width:2000-8500mm
Needle density :5000-8000n/m*2boards
Needle stroke :25-50mm
Needle frequency :800-1200r/m
Needle type :double shafts,double boards,up/down stroke

Structure:
Crank case complete with a vertical balance system.
Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems.
Magnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube;multi random computer needling methods for needle board.
Chrome plate delivery rollers with carved or patterned surface.
Auto top dead center controlled stop.
